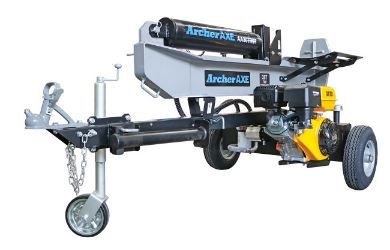

Archer Axe 30T Log Splitter
Description
The Archer Axe 30T Log Splitter offers two side log plates to hold the log in place after being split. Fitted with a high quality tow hitch, jockey wheel. Description Archer Axe - 30 ton vertical/horizontal log splitter fitted with a RATO R210 7hp engine. Maximum splitting force - 30 Tons *1 Engine - 7hp, 212cc RATO R210 *2 Maximum log length - 25” (635mm) Cycle time, down & back - 12.2 seconds *1 Cylinder - 4-1/2” dia x 24” stroke Pump, two stage - 15 GPM Wedge, heat treated steel - 9” high Beam - 9” foot plate Hydraulic capacity - 22 litres max. *3 Shipping weight - 240kg Valve - Auto return with adjustable detent Wheels - D.O.T. approved 16” O.D road tyres Coupler - 2” ball with safety chains Warranty 2 Year, limited *1 Tonnage and cycle times may vary dependent on mechanical and environmental conditions. *2 As rated by engine manufacturer *3 Minimum operational capacity is 19 litres of hydraulic fluid
